您现在所在的位置:首页 > SMC产品信息 > 新产品信息

内容

自动排水阀 AD402-A

人气:54 评论:0 标签:全部


・耐异物性提高。
・冷凝水排水量提升。
 冷凝水排水量:最大100cm3/次(是原来的3倍)。
・耐环境性提高/采用透明杯体保护罩,全方位保护。
・可视性提高:360°皆可观察。
・重量轻:质量减小22%。
・维护所需空间减小。
・维护性提高。
 外壳采用快速拆装的结构,无需工具。
・可根据使用环境选择杯体保护罩的材质。


其他资料


系列连接口径冷凝水排水口径
AD402-A1/4,3/8,1/23/8

产品特点

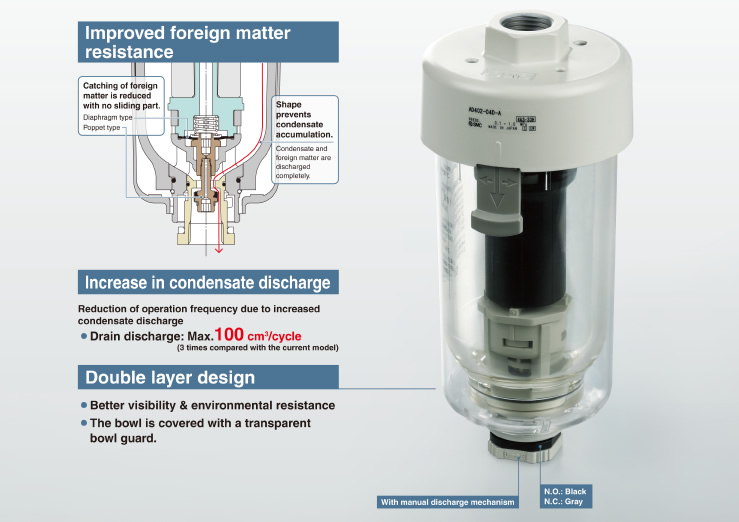

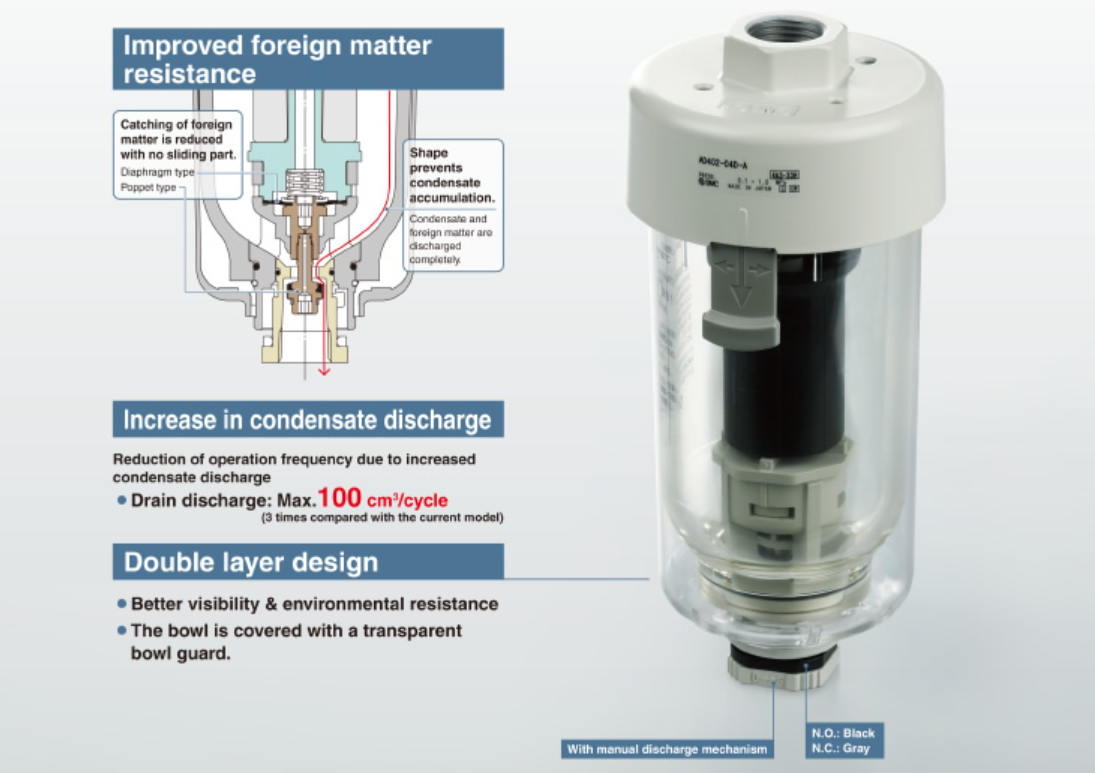

■Longer life & Higher resistance to foreign matter

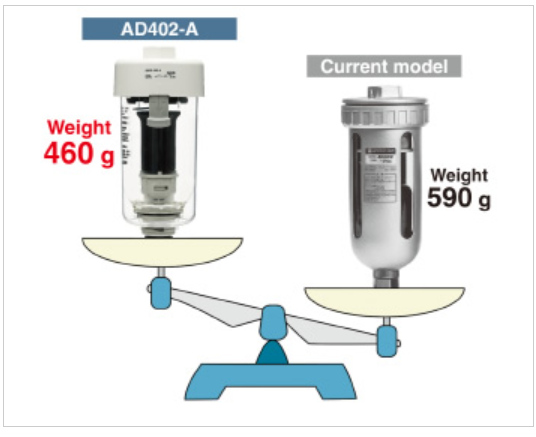

■Lightweight

Resin bowl guard has reduced the weight by 22%

■Easier maintenance

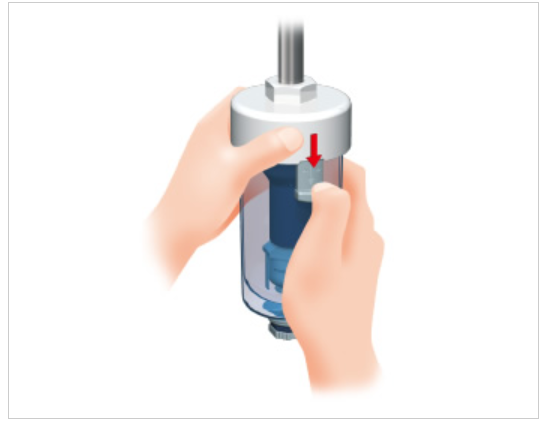

One-touch mounting and removal of the bowl is possible without using a tool.

Release the lock by sliding the lock button down while holding the body.
Then, rotate the bowl guard and pull down for removal.

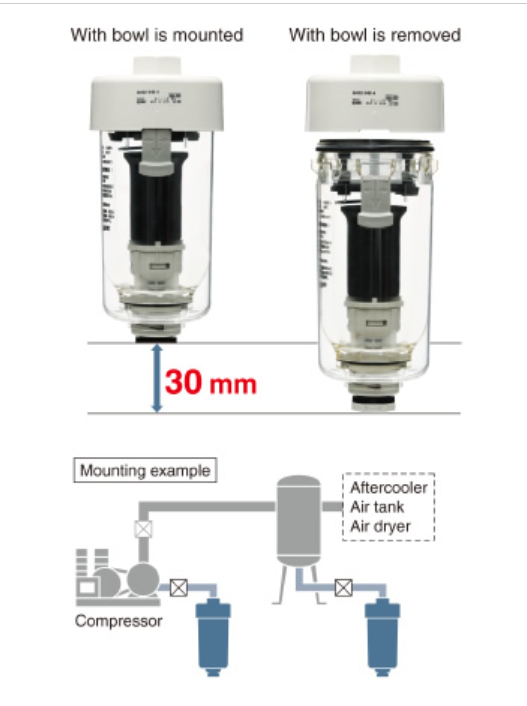

■Reduced required maintenance space

Only 30 mm of space is required underneath for maintenance, allowing more compact installation.

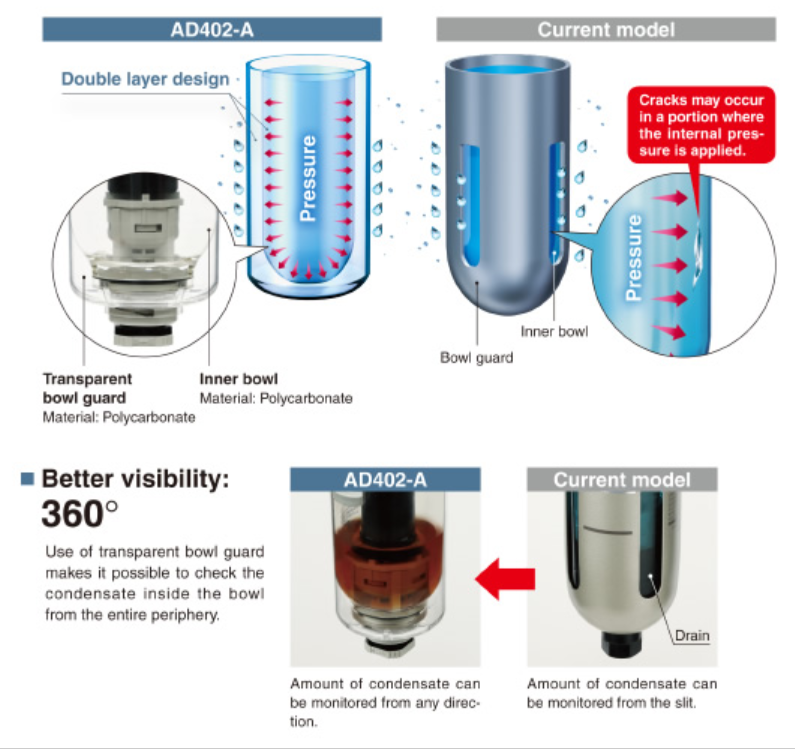

■Transparent bowl guard

Better environmental resistance: Transparent bowl guard can protect the inner bowl!

Windows on the bowl guard have been removed and the inner bowl is instead covered with a polycarbonate transparent bowl guard. Now, even if the environment changes and the bowl is exposed to corrosive chemical or oil splash, the foreign matter will not stick directly to the pressurized bowl. This can reduce risk of bowl breakage.

■Options

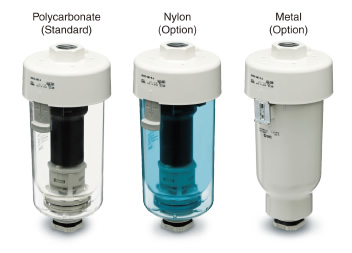

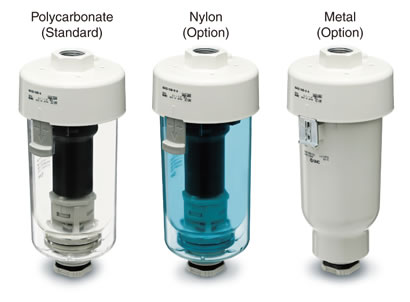

Bowl material can be selected according to the operating environments.

Bleed valve equipped type can be selected.
