・空间利用率高：可安置于19英寸的安装柜。
由于安装柜能安装多台设备，故可节省空间。
・温度稳定性：±0.01℃～0.03℃。
・设定温度范围：10℃～60℃。
・冷却能力：200W、400W、510W、800W、1kW。
・消耗功率：200W、400W。
| 系列 | 设定温度范围 | 冷却能力 | 温度稳定性 | 冷却方式 |
|---|---|---|---|---|
| HECR002 | 10～60℃ | 200W | ±0.01～0.03℃ | 珀耳帖式风冷 |
| HECR004 | 10～60℃ | 400W | ±0.01～0.03℃ | 珀耳帖式风冷 |
| HECR006 | 10～60℃ | 510W | ±0.01～0.03℃ | 珀耳帖式风冷 |
| HECR008 | 10～60℃ | 800W | ±0.01～0.03℃ | 珀耳帖式风冷 |
| HECR010 | 10～60℃ | 1kW | ±0.01～0.03℃ | 珀耳帖式风冷 |

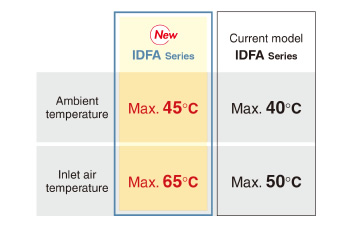

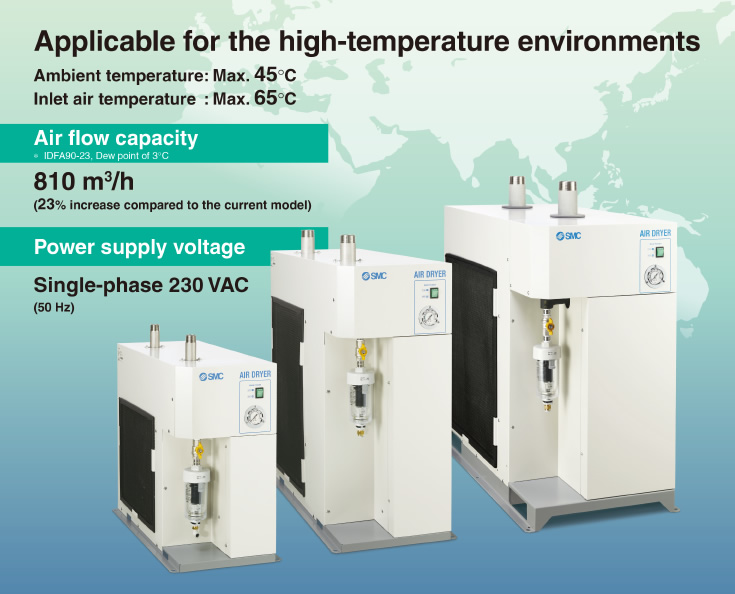

■Applicable for the hightemperature environments

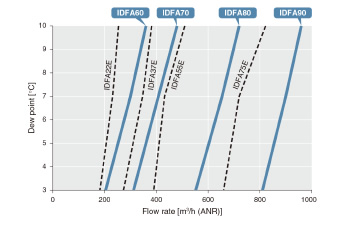

■Increased air flow capacity

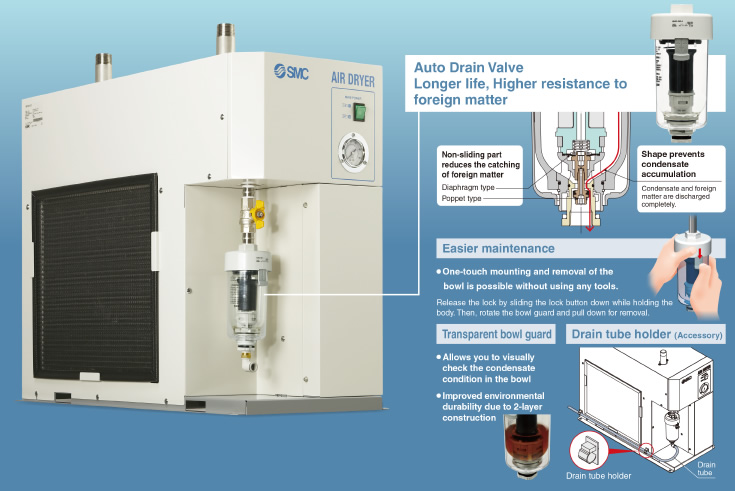

■Features ①

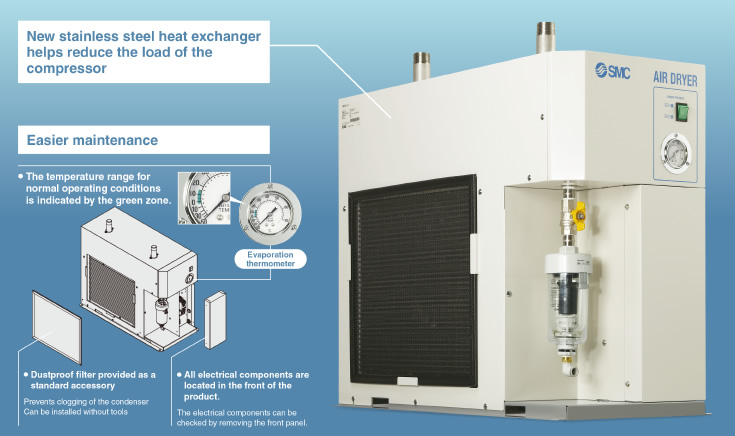

■Features ②

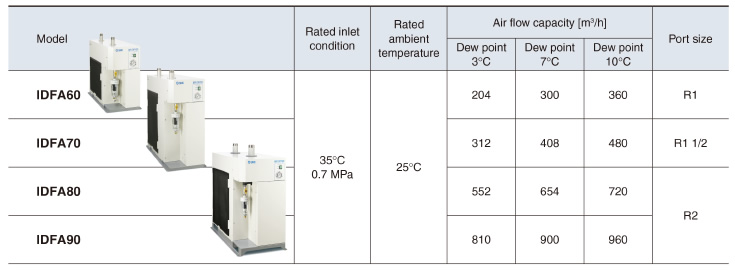

■Series Variations
■Options
・Cool compressed air output ［New］
・Anti-corrosive treatment for copper tube
・With Chinese labels and a Chinese operation manual ［New］
・With a heavy-duty auto drain
・With an earth leakage breaker
・ With a terminal block for operating, error, and remote operation signals
・With a timer controlled solenoid valve type auto drain
■Optional accessories
・Foundation bolt set
・Piping adapter
・Bypass piping set ［New］

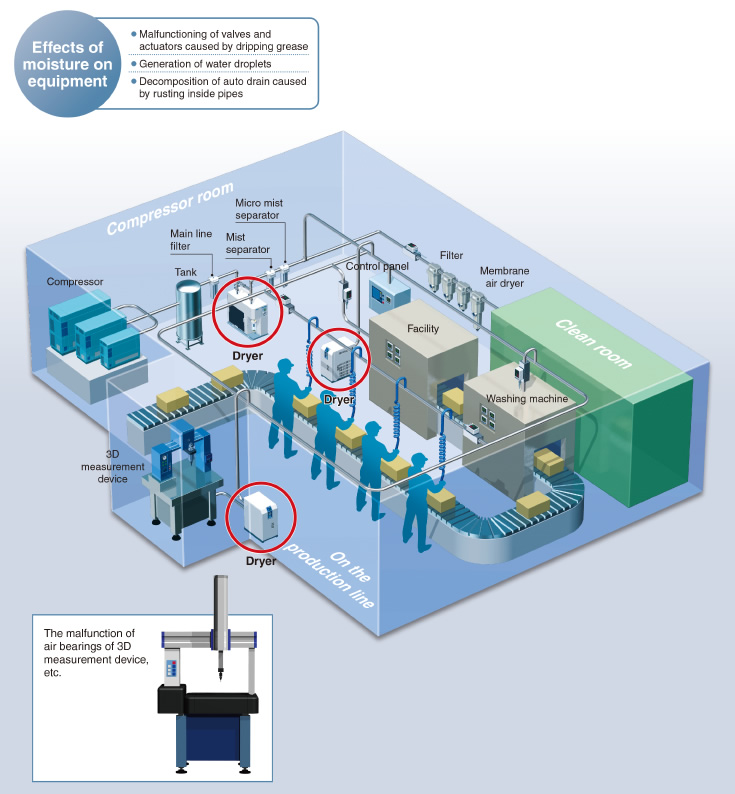

■Protect Pneumatic Equipment from Moisture!
An air dryer removes the vapor from the moist compressed air delivered by the compressor and prevents it from causing the pneumatic equipment to fail.
